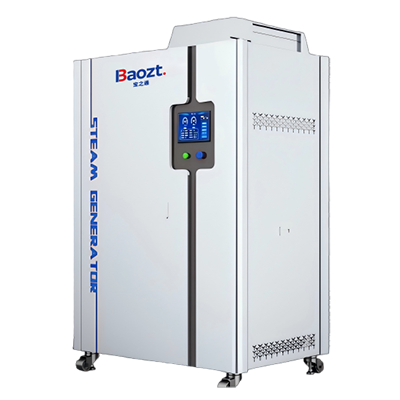

500kg/h Gas Steam Generator

Why Choose the Baozt 500kg Steam Generator?The Baozt 500kg series is engineered to be the powerhouse of your operation. Here’s why it stands out:Massive Steam Output: Generates a c...


Description

Product Tags

Why Choose the Baozt 500kg Steam Generator?
The Baozt 500kg series is engineered to be the powerhouse of your operation. Here’s why it stands out:

  • Massive Steam Output: Generates a consistent 500 kg/h of steam, ensuring you have the capacity for large-scale heating, processing, and sterilization tasks.

  • High-Pressure & High-Temperature Performance: Choose the right power level for your application. Commercial models deliver steam at 0.8 MPa (175°C / 347°F), while the Industrial models provide higher-grade steam at 1.2 MPa (192°C / 378°F).

  • Robust and Reliable: Built for continuous duty with a solid gross weight of 400 kg, this generator is a durable, long-term asset designed to withstand rigorous industrial conditions.

  • Unmatched Versatility: With four models, you can select the perfect combination of pressure, temperature, and emissions control. Standard models offer fuel flexibility (Natural Gas/LPG), while Low NOx models ensure compliance with strict environmental regulations.

  • Efficient Operation: Despite its high output, the generator maintains an efficient electrical consumption of just 1.28 kW/h, helping to manage operational costs.

Ideal Applications for the 500kg/h Generator:
The powerful output of this series makes it the perfect choice for a wide range of heavy-duty industries:

  • Food & Beverage Processing: Large-scale steam cooking, pasteurization, jacketed kettles, and plant sterilization.

  • Industrial Laundries: Powering multiple large presses, tunnel washers, and finishing equipment.

  • Chemical & Pharmaceutical: Process heating, reactor temperature control, and equipment sterilization in autoclaves.

  • Building Materials: Concrete curing, gypsum board production, and other material treatments.

  • Textile Industry: Large-scale dyeing, finishing, and shaping processes.

  • Hospital & Institutional Use: Centralized steam for large-scale sterilization, laundry, and kitchen facilities.

Model Comparison: Find Your Perfect Match
Select the model engineered for your specific requirements:

  • Commercial Standard: The versatile workhorse. Delivers 0.8 MPa / 175°C steam and runs on either Natural Gas or LPG. Perfect for large hotels, laundries, and food service operations.

  • Commercial Low NOx: The eco-conscious choice for commercial applications. Provides 0.8 MPa / 175°C steam on Natural Gas, with an integrated flue cooling system to minimize emissions.

  • Industrial Standard: The high-performance powerhouse. Pushes steam to 1.2 MPa / 192°C for demanding industrial processes and offers the flexibility of running on Natural Gas or LPG.

  • Industrial Low NOx: The ultimate solution for industry and environment. Delivers high-pressure, high-temperature steam (1.2 MPa / 192°C) while adhering to strict emissions standards, running on Natural Gas with a flue cooling system.

Detailed Technical Specifications

ParameterUnitCommercial StandardCommercial Low NOxIndustrial StandardIndustrial Low NOx
Dimensions (L×W×H)mm930×1240×1920930×1240×1920930×1240×1920930×1240×1920
Gross Weightkg400400400400
Power ConsumptionkW/h1.281.281.281.28
Rated VoltageV220220220220
Evaporation Capacitykg/h500 (MAX)500 (MAX)500 (MAX)500 (MAX)
Gas Pressure (Natural Gas)Pa3500 ~ 60003500 ~ 60003500 ~ 60003500 ~ 6000
Gas Pressure (LPG)Pa4000 ~ 60004000 ~ 6000
Natural Gas Consumptionm³/h36 (MAX)36 (MAX)36 (MAX)36 (MAX)
LPG Consumptionkg/h28 (MAX)28 (MAX)
Flue Outletmm417×376417×376417×376417×376
Steam OutletDN40 (Flange)40 (Flange)40 (Flange)40 (Flange)
Gas InletDN50 (Flange)50 (Flange)50 (Flange)50 (Flange)
Pure Water InletDN20 (Flange)20 (Flange)20 (Flange)20 (Flange)
Flue Cooling Water InletDN20 (Flange)20 (Flange)
Flue Cooling Water OutletDN20 (Flange)20 (Flange)
Condensate Drain OutletDN20 (Male Thread)20 (Male Thread)20 (Male Thread)20 (Male Thread)
Steam PressureMPa0.80.81.21.2
Steam Temperature°C175175192192
